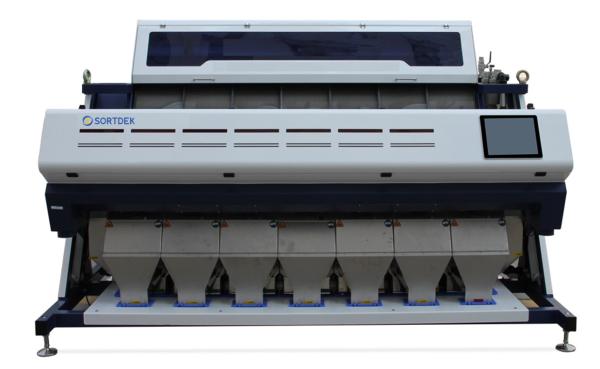

High Efficiency Smart CCD Rice Color Sorter , Rice Colour Sorting
Machine
Quick Detail:
| Model | Capacity(T/H) | Carryover | Accuracy | Voltage | Power | Weight | Dimension(mm) |
| Rapid 7 | 5-10 | 80:1 | 99.9% | 220V/50HZ | 1.9-3.2 KW | 1350kg | 2815*1710*1720 |
Description:
(1) LED: Germany OSRAM;high brightness, life-time up to 100,000
hours, and equipped with intelligent control dimming technology;
(2) sensor: Japanese TOSHIBA ;Industrial color CCD of 160 million
pixels, line frequency ≥ 10K, the minimum area of different colors
can be up to 0.0004 square millimeters;
(3) lens: Japanese NIKON, optical industry customized lens, with
150 line pairs of ultra-high resolution, low distortion: <0.2%,
low color difference: <0.1 pixel, better imaging performance;
(4) processor: ALTERA programmable logic device processor: data
processing speed>5500k bits; data transmission speed> 210mhz;
the system data acquisition and processing speed >3.125 Gbps, is
extremely high;
(5) solenoid valve: customized solenoid valve for color sorter; All
imported alloy materials, MATRIX technology introduced in Italy,
shutdown time: <0.05ms, life: >10 billion times;
(6) operation interface: 12-inch HD industrial computer, Intel CPU,
Windows operating system, 24-bit true color display, more realistic
image display;
(7) intelligent operation interface, visual analysis of images,
one-click analysis of the proportion of impurities to be removed
and transfer of sorting parameters, easier operation;
(8) support remote control for mobile phone apps and monitoring
equipment operation, convenient and fast;
(9) support Internet remote control, system upgrade function, HD
image acquisition, visual system adaptive correction technology,
self-learning statistical analysis technology, and one-key
automatic parameter adjustment technology；
(10) IR cameras are optional to be added.
Applications:
The raw material could be red rice, preboiled rice, coarse rice,
black rice, Thailand rice, Long grain rice, sticky rice, China
North-east rice.
Specifications:
| Model | Capacity(T/H) | Carryover | Accuracy | Voltage | Power(KW) | Weight(kg) | Dimension(mm) |
| Regal6 | 4.5-9 | 100:1 | >99.9% | 220V/50HZ | 2.5-4.2 | 1220 | 2500*1710*1720 |
| Regal7 | 5-10 | 100:1 | >99.9% | 220V/50HZ | 2.8-4.6 | 1350 | 2815*1710*1720 |
| Regal8 | 6-12 | 100:1 | >99.9% | 220V/50HZ | 3-5 | 1510 | 3130*1710*1740 |
| Regal10 | 7-16 | 100:1 | >99.9% | 220V/50HZ | 3.2-5.4 | 1850 | 3760*1710*1740 |
Specifications:
| Model | Capacity(T/H) | Carryover | Accuracy | Voltage | Power(KW) | Weight(kg) | Dimension(mm) |
| Rapid1 | 1-2 | 80:1 | >99.9% | 220V/50HZ | 0.5-0.8 | 270 | 875*1550*1320 |
| Rapid2 | 1.5-3 | 80:1 | >99.9% | 220V/50HZ | 0.65-1.1 | 460 | 1240*1710*1720 |
| Rapid3 | 2-4 | 80:1 | >99.9% | 220V/50HZ | 0.85-1.4 | 650 | 1555*1710*1720 |
| Rapid4 | 3-6 | 80:1 | >99.9% | 220V/50HZ | 1-1.8 | 840 | 1870*1710*1720 |
| Rapid5 | 4-8 | 80:1 | >99.9% | 220V/50HZ | 1.3-2.2 | 1030 | 2185*1710*1720 |
| Rapid6 | 4.5-9 | 80:1 | >99.9% | 220V/50HZ | 1.7-2.8 | 1220 | 2500*1710*1720 |
| Rapid7 | 5-10 | 80:1 | >99.9% | 220V/50HZ | 1.9-3.2 | 1350 | 2815*1710*1720 |
| Rapid8 | 6-12 | 80:1 | >99.9% | 220V/50HZ | 2.2-3.7 | 1510 | 3130*1710*1740 |
| Rapid9 | 7-16 | 80:1 | >99.9% | 220V/50HZ | 2.5-4.2 | 1850 | 3760*1710*1740 |
| Rapid10 | 9-18 | 80:1 | >99.9% | 220V/50HZ | 2.8-4.8 | 2190 | 3935*1710*1740 |
Competitive Advantage:
Super brain intelligent recognition
Multi-core parallel image processing system
Ultra-brain intelligent recognition, combined with image
recognition machine learning algorithm, improve optical error and
realize color-selective adaptive operation.
