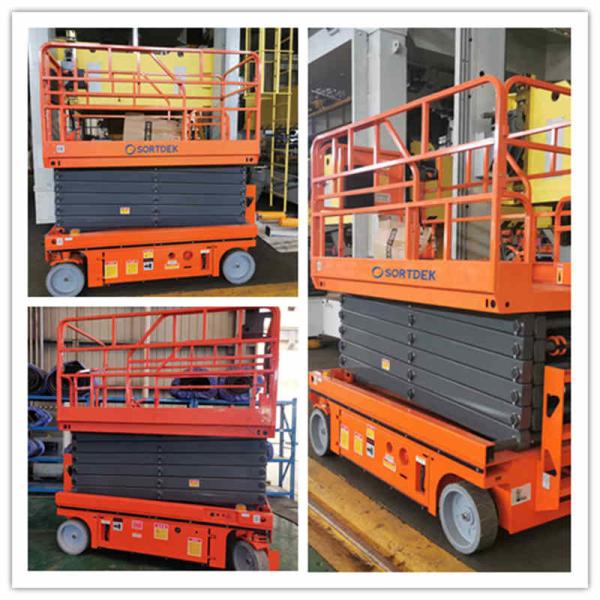

    Indoor Outdoor Aerial Work Platforms For Transportation

    Ask Lasest Price
    Brand Name : Sortdek
    Model Number : HDJD1012DC
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets per month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

    Indoor Outdoor Aerial Work Platforms For Transportation

    Indoor/Outdoor Aerial Work Platforms For Transportation, Municipal, Factory

    The scissor-type aerial work platforms widely used in urban construction, oil field, transportation, municipal, factory and other industries of aerial work.It can move and drive the platform lifting by electrical power. With higher stability, wide operating platform and high load capacity, so that the aerial work range is larger, and suitable for many people to work at the same time. It makes aerial work more efficient, more secure. The products.


    Indoor Outdoor Aerial Work Platforms For Transportation


    Product Highlights:

    • Flexible operation and transportation

    Flexible fuselage, small turning radius and wide working area
    Standard forklift hole and folding guardrail design, easy for transportation with high efficiency

    Imported hydraulic drive, walking smoothly
    Automatic control, easy to operate
    Balance alarm function, safe and reliable

    • Less maintenance costs

    Double side door configuration, simple maintenance
    High degree of spares standardization, spare parts replacement is fast

    Fault self-test function, quickly locate the fault source

    • More reliable performance

    The battery voltage warning function ensures battery life
    Bumper strip protection, anti - scratch more completely
    Pit protection and level protection system, to give a safe working experience


    Technial Paremeters:

    ModelHDJD1012DC
    DimensionsPropertiesPower
    Maximum working height12mNumber of people allowed
    on the platform
    2(indoor)/
    1(outdoor)
    Battery voltage/capacity6V×4/225Ah
    Maximum platform height (A)10mLoad capacity of platform320kgPower unit24V DC
    Maximum horizontal extension (B)0.9mRunning speed (folding condition)3.2km/hDriving pattern2WD,frount wheel
    Length under folding condition (C)2.45mRunning speed (lifting condition)0.8km/hCharger input voltage100~240V AC
    Width under folding condition (D)1.17mTotal rising time of platform
    (no load)
    53s~58sCharger output current30A
    Height(E)Folding condition
    (guardrail folding)
    1.86mTotal dropping time of platform (no load)40s~45sBrake2 rear wheel
    Foldinng condition
    (guardrail unfolding)
    2.48mClimbing ability25%Hydraulic system volume15L
    Wheel base (F)1.88mInside/outside steering radius0/2.35mWeight
    Ground clearance0.1mAllowable dip Angle during operation (front&back/left&right)3°/1.5°Machine weight (indoor/outdoor use)2775kg
    Dimension of platform(L×W×H)2.30×1.15×1.1mTire specification/type380×125mm/solidMachine weight (indoor use only)2608kg

    Configuration:

    Standard configuration
    • Maintenance-free battery
    • Automatic braking system
    • Full range moving
    • Proportional control
    • Emergency descent system
    • Forklift hole and hoisting hole
    • Bumper strip
    • Emergency stop button
    • Electrophoretic coating technology
    • 4×2 drive
    • Fault diagnosis system
    • Folding guardrail
    • Traceless tire
    • Tilt protection system
    • Protective handle bracket
    • Automatic pit protection
    Optional configuration
    • Weighing system
    • Height limit device for anti-collision
    • Lighting
