High Efficiency Mineral Sorting Machine Double Layer 2.0 - 4.0 KW
Power
Quick Detail:
| Model | MD2 |
| Layer No. | double |
| Output(T/H) | 1-4cm | 8-15 |
| 4-8mesh | 5-9 |
| 8-16mesh | 3-7 |
| 16-26mesh | 1.5-3 |
| Carryover rate | >30:1 |
| Accuracy (%) | >99% |
| Voltage(v/HZ) | 220V/50HZ |
| Power(KW) | 2.0-4.0 |
| Air pressure(Mpa) | 0.6-0.8 |
| Consumption(L/min) | 3800 |
| Weight(kg) | 1850 |
| Dimension(mm) | 4014*2100*2374mm |
Description:
Image processing system
Applying the international advanced full color scanning technology,
DSP+FPGA processing technology, as well as complex algorithm of
multiple modes combined with color and space, this system can
provide the function of color & shape-based sorting depending on
the difference of materials.
Color image acquisition system
Using high-definition color CCD(5200px) camera image acquisition
system to achieve material(RGB) red, green and blue three color
information acquiring, depth recognition tiny fine color sorter can
choose other impurities.
Operating system
With intelligent operating platform, the system can be mastered and
operated easily, turning the intelligent communication between
human and machine into reality and eliminating all your concerns
about operating.
Cloud object link system
Autonomous cloud control, cloud computing technology, the
realization of online operations, online monitoring, online
services, free upgrades.
Intelligent magnetic control high frequency electromagnetic valve
Independent development of color choose intelligent magnetic
control high frequency electromagnetic valve, create a leading
technology. Compared with the industry average electromagnetic
valve to save power consumption about 70%, save gas consumption
about 20%. Application of new high anti-wear material matching
equipment used, to ensure that life, to create the best production
efficiency.
Custom sorting structure
As per the different requirement of the mineral features, SORTDEK
launched variety types of color sorters.
New type of LED light source system
Using intelligent LED optical system design, intelligent flexible
light-operated switch background light color, and uses the
condenser unit to prevent LED astigmatism.
Automatic dust cleaning system
Add automatic dust removal device and automatic spray cleaning
system. Can be customized to meet special mineral, assure the
stability of the separation effect.

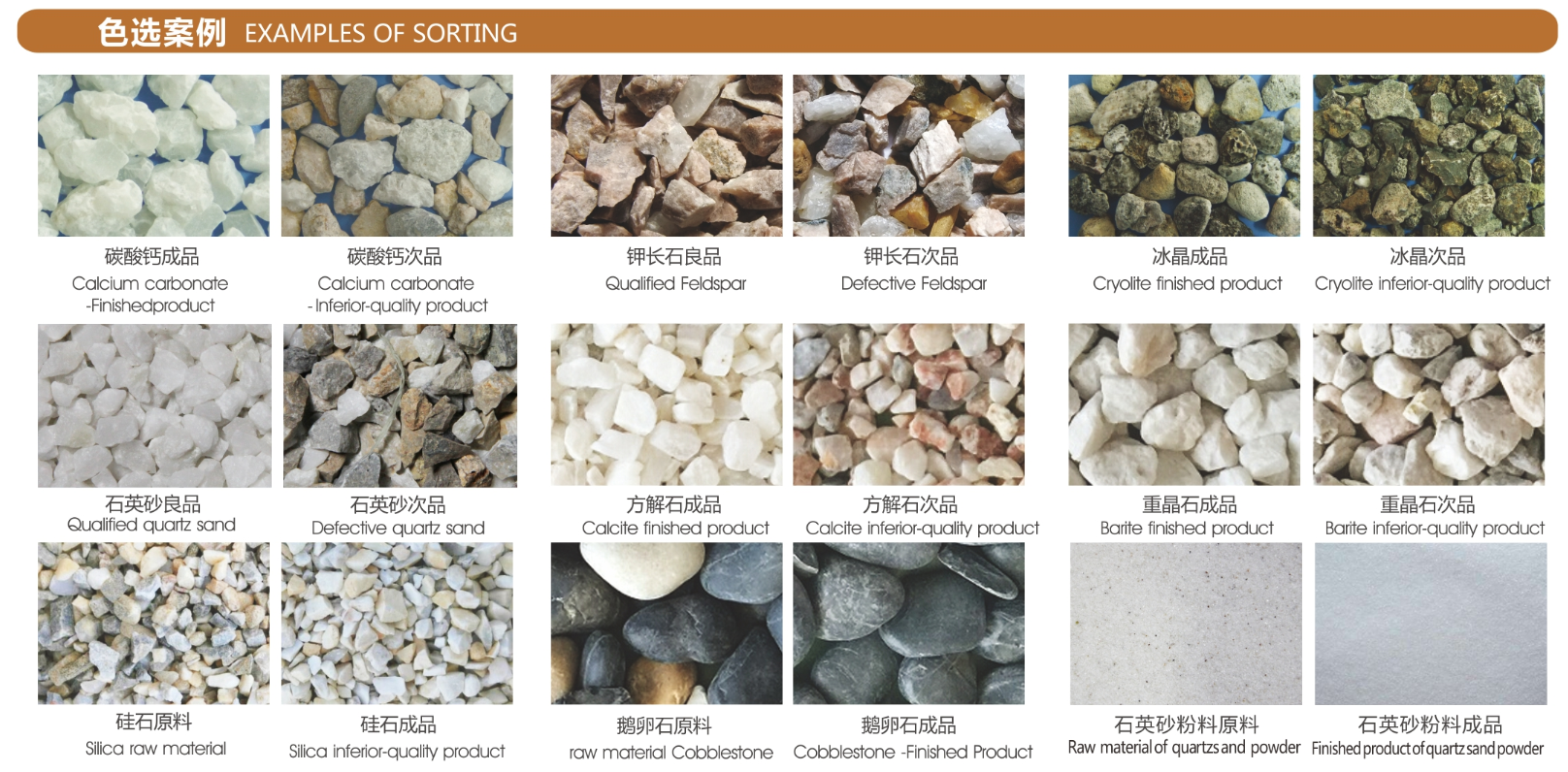

Mineral Color Sorter Of Applications:
Sorting variety type and size of stone like quartz, Calcium
carbonate, feldspar, Cryolite.
Specifications:
| Model | Layer No. | Output(T/H) | Carryover rate | Accuary | Voltage | Power(KW) | Air pressure (Mpa) | Air Consumption (L/Min) | Weight(kg) |
| MS2-W | Single | 1-3cm | 6-10 | >30:1 | >99% | 220V/50HZ | 1.6-2.5 | 0.6-0.8 | 2400 | 1600 |
| 3-5cm | 8-13 |
| MD2-W | double | 1-3cm | 6-12 | >40:1 | >99% | 220V/50HZ | 2.0-4.0 | 0.6-0.8 | 3800 | 2500 |
| 3-5cm | 8-15 |
| MS2 | Single | 1-4cm | 8-12 | >22:1 | >99% | 220V/50HZ | 1.6-2.5 | 0.6-0.8 | 2400 | 1250 |
| 4-8mesh | 4-8 |
| 8-16mesh | 3-6 |
| 16-26mesh | 1-2 |
| MD2 | double | 1-4cm | 8-12 | >30:1 | >99% | 220V/50HZ | 2.0-4.0 | 0.6-0.8 | 3800 | 1850 |
| 4-8mesh | 4-8 |
| 8-16mesh | 3-6 |
| 16-26mesh | 1-2 |
Competitive Advantage:
Solve the tiny mineral separation process, ore and crawler problems
such as caking. Choose don’t wide ranging from 26 mesh to 120 mesh
fine are particles.
