    Single Chute 63 Ejectors CCD Color Sorter Multi Purpose

    Ask Lasest Price
    Brand Name : Sortdek
    Model Number : ECO 1
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets per month
    Delivery Time : 15 Days
    • Product Details
    • Company Profile

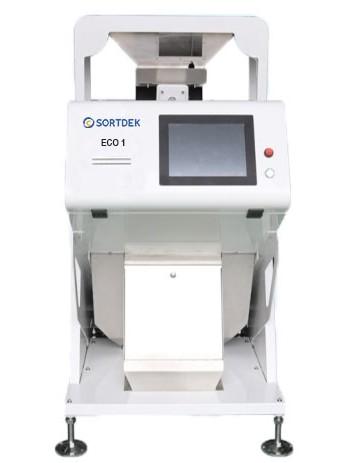

    Single Chute 63 Ejectors CCD Color Sorter Multi Purpose

    ECO Series Single Chute 63 Ejectors Multi-Purpose CCD Color Sorter

    ECO Series high resolution trichromatic full RGB color sorter is a multi-purpose model for a variety of materials sorting, providing ideal solutions for rice, wheat, corn, bean, pulses, seeds, nuts, peanuts, spices, lentil, coffee beans, plastic, etc. One chute to ten chutes machine available, offering flexible sorting solutions for customers from different fields.


    Technial Paremeters:

    ModelEjector
    (pcs)
    Chute
    (pcs)
    Power
    (Kw)

    Voltage

    (V)

    Air Pressure
    (Mpa)
    Air Consumption
    (m³/min)
    Weight (Kg)Dimension
    (L*W*H,mm)
    ECO 1631<1.5AC220V0.6~0.8<1.0450910*1610*1545
    ECO 21262<1.8AC220V0.6~0.8<2.07001224*1610*1620
    ECO 31893<2.4AC220V0.6~0.8<2.59001516*1570*1850
    ECO 42524<2.6AC220V0.6~0.8<4.012001870*1595*2040
    ECO 53155<3.0AC220V0.6~0.8<5.013502250*1570*1850
    ECO 63786<3.6AC220V0.6~0.8<5.515002528*1595*2040
    ECO 74417<4.0AC220V0.6~0.8<6.016502765*1570*1850
    ECO 85048<4.6AC220V0.6~0.8<6.518003152*1595*2040
    ECO 1063010<5.5AC220V0.6~0.8<8.022003910*1595*2040

    Features:

    (1) The whole series includes intelligent image acquisition system, including HD camera, 5400 CCD sensor and imported high speed processor, which can realize high frequency scanning of materials, color sorting accuracy is higher with better carryover ratio.
    (2) 12-inch HD industrial touch screen, windows operating system, with stable performance, realize real-time man-machine interaction.
    (3) Unique high-frequency high-speed solenoid ejector, ultra-short reaction speed, ultra-low air consumption, accurate removal, low maintenance cost, life cycle is more than 10 billion times.
    (4) Adopt high stability stepless dimming LED light source, higher durability, lower power consumption, life-time up to 50,000 hours.
    (5) Intelligent spectrum recognition algorithm, according to the spectrum characteristics and recognition features, automatic calibration for image, achieve more accurate sorting effect.
    (6) AI deep learning and customized intelligent solutions for color sorting and size sorting both.
    (7) Support remote control and online monitoring of equipment, convenient and fast.
